\n Description

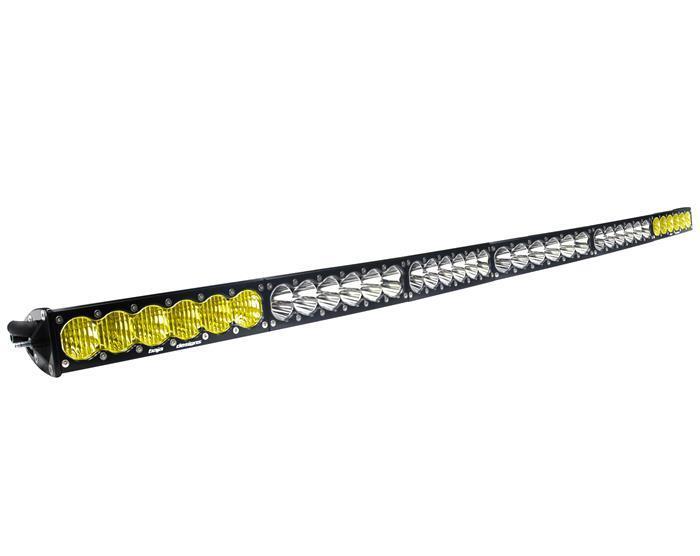

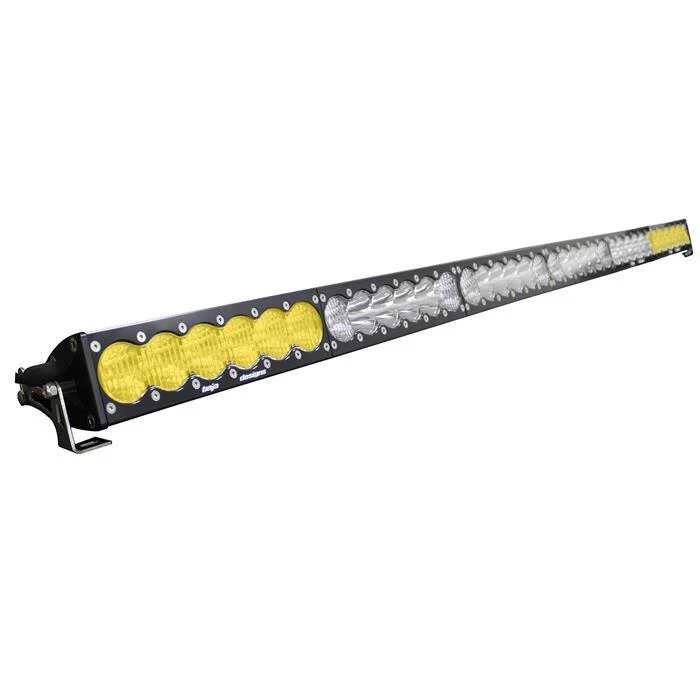

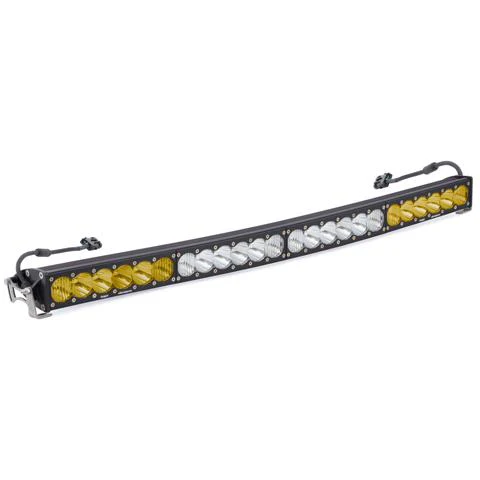

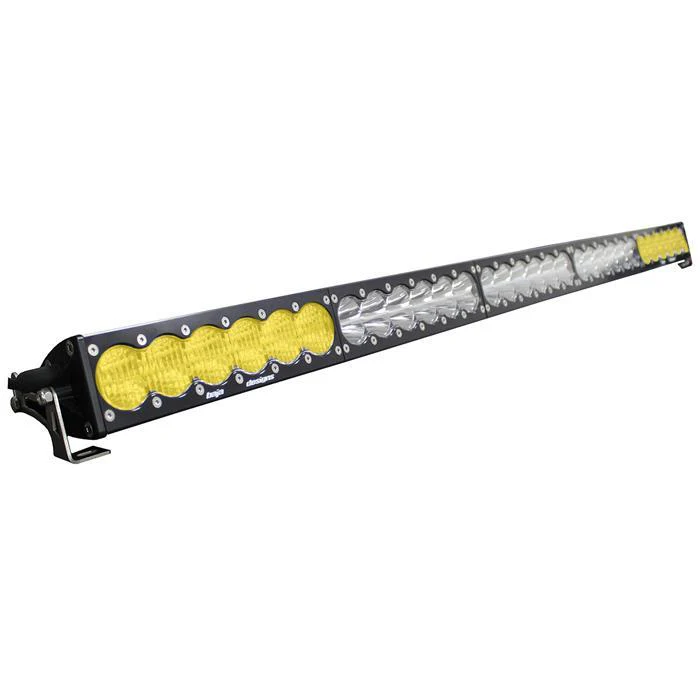

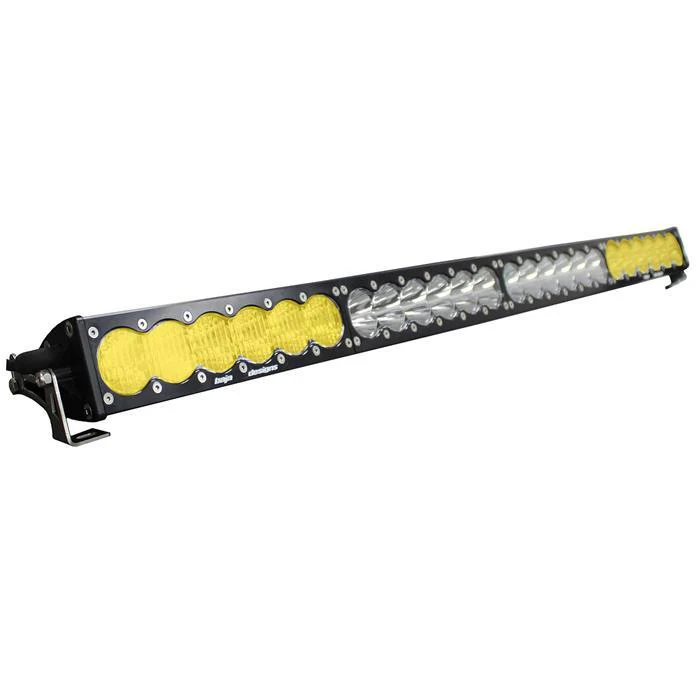

\nNow you can have the best of both worlds with the OnX6™ Dual Control LED Light Bar. With the addition of another power cord and switch, you have the ability to control the inner and outer sections individually. This configuration provides a versatile package by allowing you to have one light bar with both amber and white light. An industry first 30 Day Satisfaction Guarantee & Limited Lifetime Warranty is included for the ultimate in purchase protection.
\nThis bar is equipped with BMT – Battery Management Technology
\n\n Specifications
\n| Width | \nLumens | \nWattage/Amps | \nDimensions | \n
|---|---|---|---|
| 30\" | \n(High) 32,070 (Low) 25,610 Utilizing 18 Cree LEDs | \n(High) 278W / 21.7A (Low) 222W / 17.1A | \n30\" x 4.29\" x 2.69\" | \n
| 40\" | \n(High) 39,220 (Low) 32,760 Utilizing 18 Cree LEDs | \n(High) 340W / 26.8A (Low) 284W / 22.4A | \n40\" x 4.29\" x 2.69\" | \n
| 50\" | \n39,910 | \n346W / 28.2A | \n50\" x 4.29\" x 2.69\" | \n
- \n
- \nLED Life Expectancy: 49,930 Hours \n
- \nFront Lens: Hard Coated Polycarbonate \n
- \nHousing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize \n
- \nBezel: Billet Machined Aluminum \n
- \nHardware & Bracket Material: Stainless Steel \n
- Exceeds MIL-STD810G (Mil-Spec Testing) \n
- Built-In Overvoltage Protection \n
- IP69K (Waterproof up to 9ft & Pressure Washable) \n
- IK10 Compliant (Mechanical Impact Testing) \n
\n What's Included
\n- \n
- OnX6 Dual Control LED Light Bar \n
- Mounting Brackets \n
- Hi-Low Dongle \n
\n Features
\n- \n
- Elimination Of Flickering at Low Voltage \n
- Added Protection to Vehicle Wiring and Systems \n
- Protection from Dangerous Current Spikes \n
- \nuService® – Replaceable Lenses And Optics \n
- \nClearView® – All The Light, Right Where You Need It. \n
- \nMoistureBlock™ – Waterproof, Rain Proof, Submersible \n
- \nCopperDrive® – Only LED Driven At 100% \n
- \n5000K Daylight – Less Driver Fatigue, Natural Color \n
\n Beam Patterns
\nDriving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (42°) and the spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
\nWide Driving: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2) (Also available in amber)
\nHigh Speed Spot: A longer and narrower 6° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
